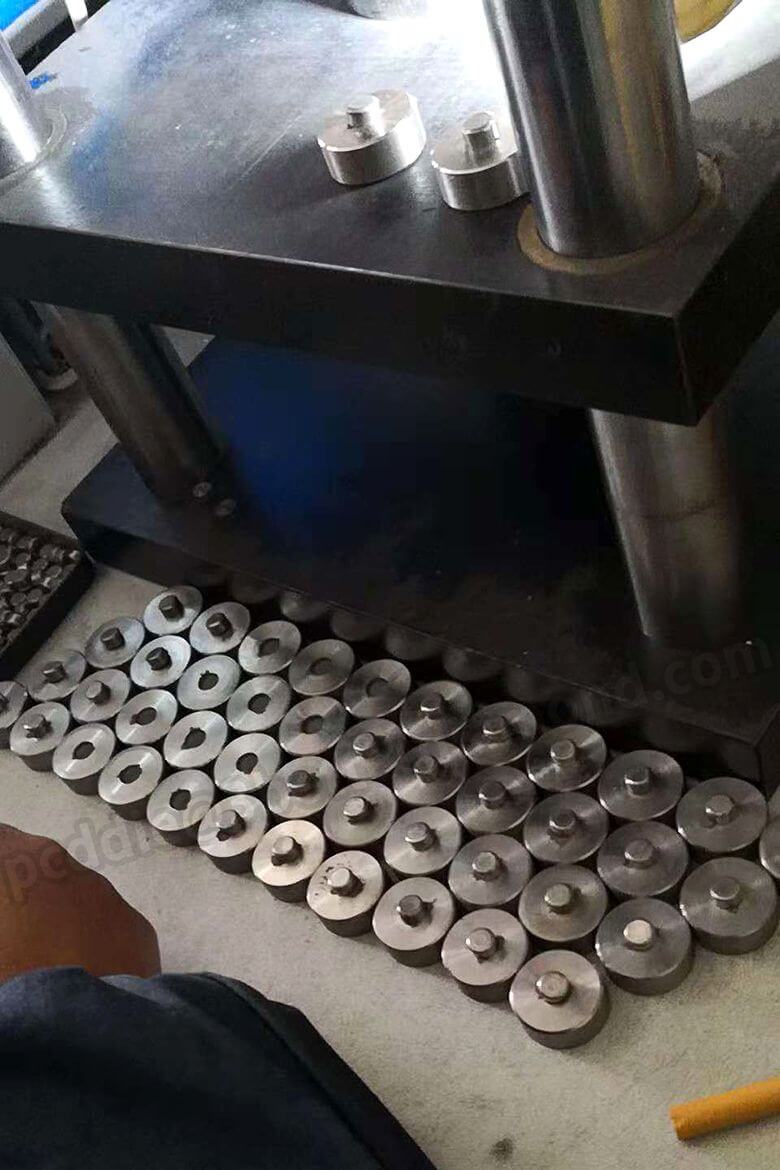

wire drawing die Inlaid outer casing

3 BETTER factory uses high-frequency sintering machine and mature sintering press technology to sinter and press the wire drawing die outer casing and die core

Wire drawing die wire drawing test We strictly control each production process step of wire drawing die All finished dies are 100% individually and microscopically inspected,

Lathe polishing the outer casing of each finished wire drawing die to ensure that the surface of the die has a smooth appearance and uniform tolerances. In addition, the tungsten carbide outer casing will be coated with anti-rust oil to prevent rusting.

We use professional testing instruments to test each working area of each finished wire drawing die to ensure the quality of the wire drawing die

The grinding and polishing in the wire drawing die production process determine the profile of the die, and the quality of the profile of the wire drawing die determines the service life.

Diamond die PCD die Ultrasonics machines for dies shaping and polishing High machining accuracy, wide range of materials, improved machining efficiency, reduced machining cost,

Die marking of wire drawing die production process, the factory can provide die marking service to mark according to the text or graphic effect you want

The LPD-YAG laser precision punching machine we use can punch precise small holes with a diameter of 10 microns and a trumpet shape on the diamond die, and can also meet the punching requirements of large-diameter wire drawing dies.

Wire Drawing Die Processing Laser Drilling Diamond Die Precision Laser Drilling Machine for drilling on ND PCD TC die

We are a professional manufacturer of wire drawing dies, with a complete production and quality control system such as cutting, inlay, laser drilling, grinding, polishing, inspection, etc.

In the production process of steel wire, the wire drawing die is the main tool to realize the smooth drawing of the steel wire. The wire drawing die directly affects the dimensional accuracy and surface quality of steel wire products, as well as energy consumption and production efficiency.

In the process of heating and sintering, the preset sintering temperature is adopted, and the pressure is automatically applied after reaching the sintering temperature, so as to ensure that the quality of each wire drawing die product remains stable and consistent.

Drawing die diameter measuring diamond die hole meter Used to measure the inner diameter of different wire drawing dies, stable performance, using image processing technology, fast speed and high precision

The wire drawing die polishing machine and equipment used for polishing the inner wall of the wire drawing die, extrusion die, etc.

Precisely Inlaid the wire drawing die blank and binder powder into the wire drawing die casing and then use a high frequency sintering machine to sinter the die

Drawing die factory uses UPM-250 ultrasonic grinder for drawing die grinding and polishing and repairing

Diamond wire drawing die grinding Ultrasonic grinder machine for grinding and polishing of diamond dies carbide wire drawing dies.

The laser punching machine used in the punching of the wire drawing die uses the energy of the light to reach a high energy density at the focus after being focused by a lens, so as to form the required aperture size on the die.

We use a laser drilling machine to process the hole diameter of the wire drawing die, which is used to pull out high-quality fine wires to meet the customer’s demand for the diameter of the wire drawing die diameter

High-speed wire polishing machine sizing and polishing diamond wire drawing dies Three independent drive polishing devices Effective polishing diameter 0.2–4 mm diamond dies or polycrystalline wire drawing dies

Ensure the precision of wire drawing die hole type grinding, stabilize the quality of the die, thereby improving the service life of the die

The hole structure of the die is the main factor affecting the quality of the wire drawing die. We use professional testing equipment to test the hole structure parameters of the inner hole of the wire drawing die, and strictly check the accuracy of the inner hole of the wire drawing die to ensure the quality of the finished wire drawing die.

The professional manufacturer of wire drawing dies shows you how drawing dies are produced

The wire drawing die factory uses an advanced laser punching machine to punch the wire drawing die with high precision

Custom design wire drawing die,We can provide various drawing die outer casing options service

The laser drilling machine with ultra-small laser focus point can meet the processing requirements of high-precision 0.015mm micro-hole wire drawing die aperture
